Mastering Memory Management in Apache Spark: A Deep Dive from JVM to Databricks
Memory management in Apache Spark is like conducting an orchestra — every component needs to work in harmony to create optimal performance. In this comprehensive guide, we’ll explore how Java Virtual Machine (JVM) memory works, how Spark builds upon it, and how Databricks orchestrates everything for peak performance. We’ll include practical examples in PySpark and Databricks to help you implement these concepts in your daily work.

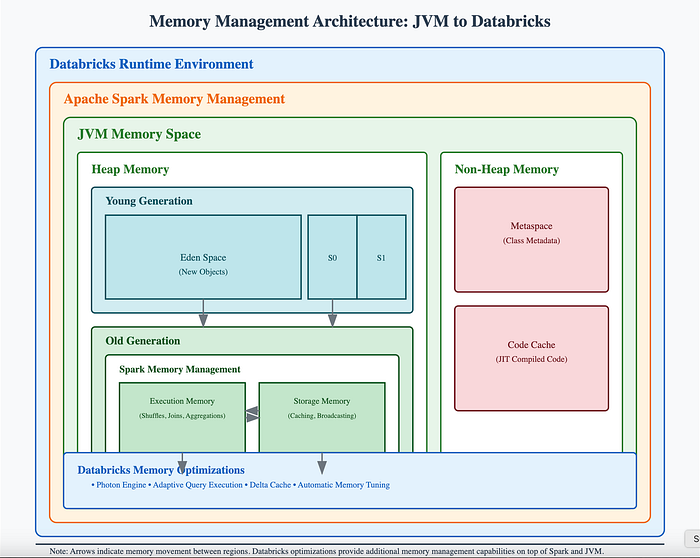

Spark’s Memory Architecture: The Next Layer
Spark builds upon the JVM foundation with its unified memory management system. Let’s explore this with practical examples.
Configuring Spark Memory in Databricks
First, let’s see how to configure Spark memory settings in a Databricks notebook:
# Configure Spark memory settings
spark.conf.set("spark.memory.fraction", "0.75")
spark.conf.set("spark.memory.storageFraction", "0.32")
spark.conf.set("spark.driver.memory", "16g")
spark.conf.set("spark.executor.memory", "32g")# Display current configuration
display(spark.conf.get("spark.memory.fraction"))
display(spark.conf.get("spark.memory.storageFraction"))Understanding Memory Impact with Real Examples
Let’s examine how different operations affect memory usage:
from pyspark.sql.functions import *
import numpy as np
# Create a dataset
def generate_large_dataset(spark, size=1000000):
"""
Generate a large dataset to demonstrate memory usage
"""
return (spark.range(0, size)
.withColumn("random_value", rand())
.withColumn("complex_calculation",
expr("cast(random_value * 1000 as int)"))
.cache())
# Generate and cache dataset
large_df = generate_large_dataset(spark)
# Force materialization and monitor memory
large_df.count()Memory-Intensive Operations and Their Optimization
Let’s look at common memory-intensive operations and how to optimize them:
#Join Optimization
def optimize_join_operation(df1, df2, key_col):
"""
Optimize a join operation using broadcast join when appropriate
"""
# Get size of both dataframes
size_df1 = df1.count()
size_df2 = df2.count()
# If one dataframe is significantly smaller, use broadcast join
if size_df1 < size_df2 * 0.1: # 10% threshold
return df2.join(broadcast(df1), key_col)
elif size_df2 < size_df1 * 0.1:
return df1.join(broadcast(df2), key_col)
else:
# Use regular join with optimized shuffle partitions
return (df1.join(df2, key_col)
.repartition(spark.conf.get("spark.sql.shuffle.partitions")))
#usage
small_df = spark.createDataFrame([(i, f"value_{i}") for i in range(100)], ["id", "value"])
result_df = optimize_join_operation(large_df, small_df, "id")Advanced Memory Management in Databricks
Databricks provides additional tools and optimizations for memory management. Let’s explore them:
Delta Lake Integration and Memory Optimization
# Efficient Delta Lake usage
def write_optimized_delta(df, path):
"""
Write data to Delta Lake with optimized settings
"""
return (df.write
.format("delta")
.mode("overwrite")
.option("dataChange", "false")
.option("mergeSchema", "false")
.save(path))
# Implement with optimization
write_optimized_delta(large_df, "/path/to/delta/table")Memory-Aware Data Processing
Here’s a pattern for processing large datasets while being memory-conscious:
from pyspark.sql.window import Window
def process_large_dataset(spark, input_path, batch_size=100000):
"""
Process a large dataset in batches to manage memory effectively
"""
# Read the dataset
df = spark.read.format("delta").load(input_path)
# Add row number for batching
windowed = Window.orderBy("id")
df_with_row_num = df.withColumn("row_num", row_number().over(windowed))
# Get total count
total_rows = df.count()
# Process in batches
for batch_start in range(0, total_rows, batch_size):
batch_end = batch_start + batch_size
# Process batch
current_batch = (df_with_row_num
.filter(f"row_num > {batch_start} AND row_num <= {batch_end}")
.drop("row_num"))
# Perform operations on batch
process_batch(current_batch)
# Clear cache after batch processing
current_batch.unpersist()
def process_batch(batch_df):
"""
Process individual batch with memory-intensive operations
"""
# Your processing logic here
passMonitoring Memory Usage in Databricks
Implementing proper monitoring is crucial. Here’s how to set up memory monitoring:
# Create a memory monitoring function
def monitor_memory_metrics():
"""
Monitor and log memory metrics
"""
metrics = spark.sparkContext.statusTracker().getExecutorMetrics()
for executor_id, metric in metrics.items():
print(f"Executor {executor_id} Metrics:")
print(f"Memory Used: {metric.memoryUsed}")
print(f"Memory Free: {metric.memoryFree}")
print(f"Disk Space Used: {metric.diskSpaceUsed}")
print("---")# Set up periodic monitoring
from time import sleep
def periodic_memory_check(interval_seconds=60):
"""
Periodically check memory metrics
"""
while True:
monitor_memory_metrics()
sleep(interval_seconds)Advanced Memory Optimization Techniques
Here are some advanced techniques for handling memory-intensive operations:
# Implementing a custom accumulator for memory-efficient aggregation
from pyspark.accumulators import AccumulatorParam
class SetAccumulator(AccumulatorParam):
"""
Custom accumulator for memory-efficient unique value tracking
"""
def zero(self, initialValue):
return set([])
def addInPlace(self, v1, v2):
v1.update(v2)
return v1
# Register the accumulator
unique_values = spark.sparkContext.accumulator(set([]), SetAccumulator())
# Use in transformations
def track_unique_values(df, column):
"""
Track unique values efficiently using accumulator
"""
def update_accumulator(row):
unique_values.add([row[column]])
return row
return df.rdd.map(update_accumulator).toDF()Best Practices for Production Deployments
Let’s implement some best practices for production environments:
# Configuration best practices
def configure_production_environment():
"""
Configure Spark for production environment
"""
# Memory configuration
spark.conf.set("spark.memory.fraction", "0.75")
spark.conf.set("spark.memory.storageFraction", "0.32")
# GC configuration
spark.conf.set("spark.executor.extraJavaOptions", """
-XX:+UseG1GC
-XX:InitiatingHeapOccupancyPercent=35
-XX:ConcGCThreads=4
""")
# Databricks-specific optimizations
spark.conf.set("spark.databricks.optimizer.adaptive.enabled", "true")
spark.conf.set("spark.databricks.adaptive.autoOptimizeShuffle.enabled", "true")
# Delta optimization
spark.conf.set("spark.databricks.delta.optimizeWrite.enabled", "true")
spark.conf.set("spark.databricks.delta.autoCompact.enabled", "true")
# Implement configuration
configure_production_environment()Handling Data Skew
Here’s how to handle data skew effectively:
def handle_skewed_join(df1, df2, join_key, num_salts=4):
"""
Handle skewed joins using salting technique
"""
# Add salt to larger dataset
salted_df1 = (df1
.withColumn("salt", monotonically_increasing_id() % num_salts)
.withColumn("salted_key", concat(col(join_key), col("salt"))))
# Replicate smaller dataset
salted_df2 = (df2.crossJoin(spark.range(num_salts).toDF("salt"))
.withColumn("salted_key", concat(col(join_key), col("salt"))))
# Perform join on salted key
result = (salted_df1
.join(salted_df2, "salted_key")
.drop("salt", "salted_key"))
return resultPerformance Monitoring and Optimization
Implement comprehensive monitoring:
from datetime import datetime
class SparkPerformanceMonitor:
"""
Comprehensive Spark performance monitoring
"""
def __init__(self):
self.metrics = {}
def start_operation(self, operation_name):
self.metrics[operation_name] = {
'start_time': datetime.now(),
'memory_before': self.get_memory_metrics()
}
def end_operation(self, operation_name):
self.metrics[operation_name].update({
'end_time': datetime.now(),
'memory_after': self.get_memory_metrics()
})
self.print_metrics(operation_name)
def get_memory_metrics(self):
return spark.sparkContext.statusTracker().getExecutorMetrics()
def print_metrics(self, operation_name):
metrics = self.metrics[operation_name]
duration = (metrics['end_time'] - metrics['start_time']).total_seconds()
print(f"Operation: {operation_name}")
print(f"Duration: {duration} seconds")
print("Memory Usage:")
print("Before:", metrics['memory_before'])
print("After:", metrics['memory_after'])
# Usage
monitor = SparkPerformanceMonitor()
monitor.start_operation("large_join")
# Perform operation
monitor.end_operation("large_join")Conclusion
Understanding and optimizing memory management in Spark and Databricks requires a deep knowledge of both the JVM and Spark’s memory architecture. While standard Spark provides robust memory management capabilities, Databricks enhances these with enterprise-grade optimizations and monitoring tools.
Key takeaways for successful memory management:
- Start with proper JVM and Spark memory configuration
- Implement monitoring and optimization strategies
- Use appropriate tools and techniques for different workload types
- Regularly review and adjust based on performance metrics
Remember that memory management is not a one-time setup but requires continuous monitoring and adjustment based on your workload patterns and requirements. With proper understanding and configuration, you can achieve optimal performance for your Spark applications on Databricks.
